3 Wheeler L5 Electric Vehicle Kit

Authorised Distributor

Authorised Distributor

3 Wheeler L5 Electric Vehicle Kit (Gear Box + Motor + Controller)

Ratio* 10.3/12.3
Input speed rating 6750 rpm
Motor mount configuration 10 splines
IP Rating 65
Motor Dana Motor (IPM 200-33)
Input shaft to output shaft centre 133.35 mm
System Voltage 48 V
Motor Peak Torque 45 Nm
Peak Power 5 - 15 KW
Continuous Power 3-8 KW
  • Made in India
  • 3 in 1 Solution
  • Proven Engineered Product
  • Engineering Support

Motor

product-img

Gear Box

product-img

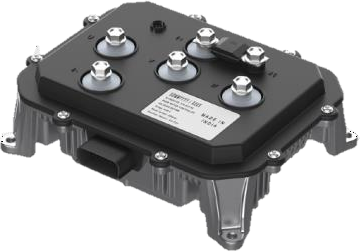

Controller

Vehicle Model : Suitable for all three wheeler with 48V system

product-img product-img

Gearbox for Three Wheeler

PART NO. DESCRIPTION TOTAL REDUCTION GEAR RATIO NO. OF TEETH ON INPUT SHAFT NO. OF TEETH ON OUTPUT SHAFT OUTPUT SHAFT SPLINE LENGTH
313119AA3 GEAR BOX - IRS - 10,302 1:10,302 10 27 20±3
313187AA3 GEAR BOX - IRS - 9,200 1:9,200 10 27 20±3
313943AA3 GEAR BOX - IRS - 12,315 1:12,315 10 27 20±3
314792AA3 GEAR BOX - IRS - 10,302 1:10,302 10 27 30±3
314795AA3 GEAR BOX - IRS - 12,315 1:12,315 10 16 24.7

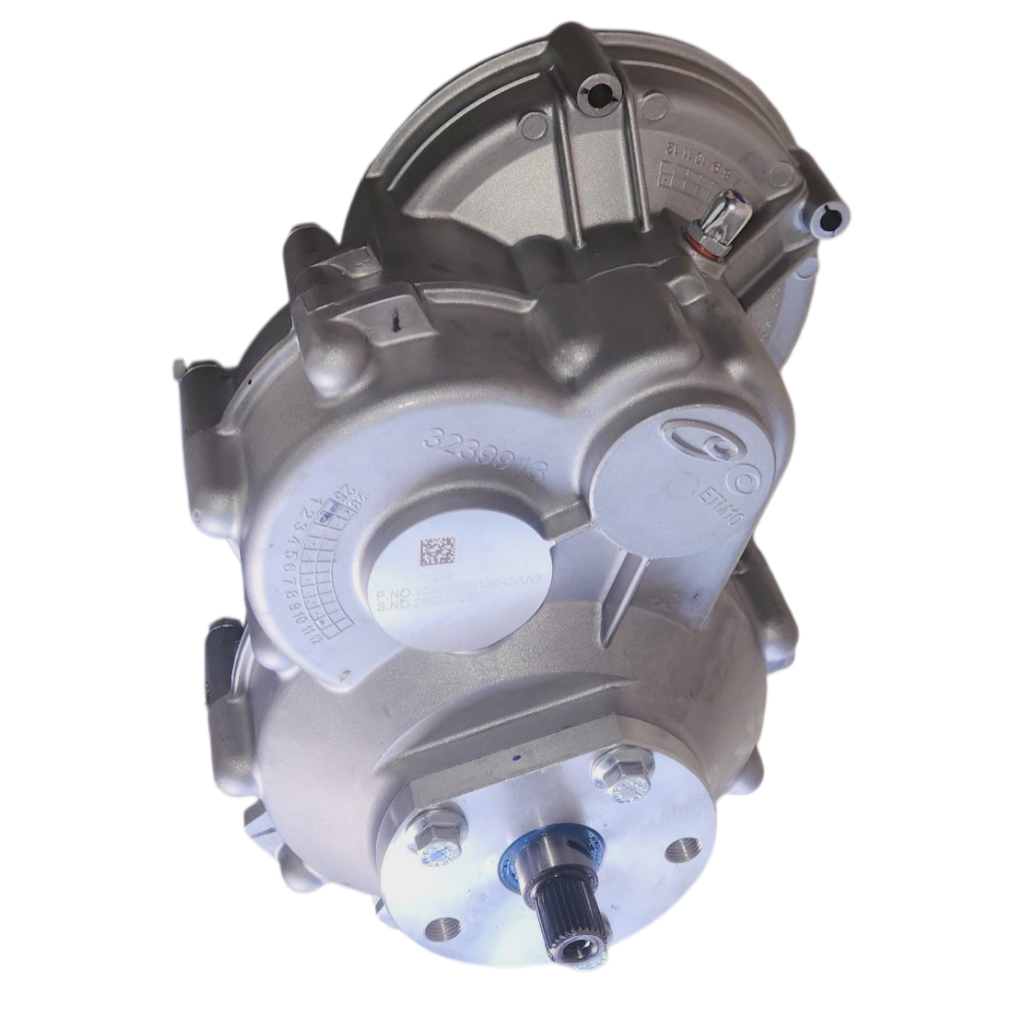

NTS GREEN 9858 1

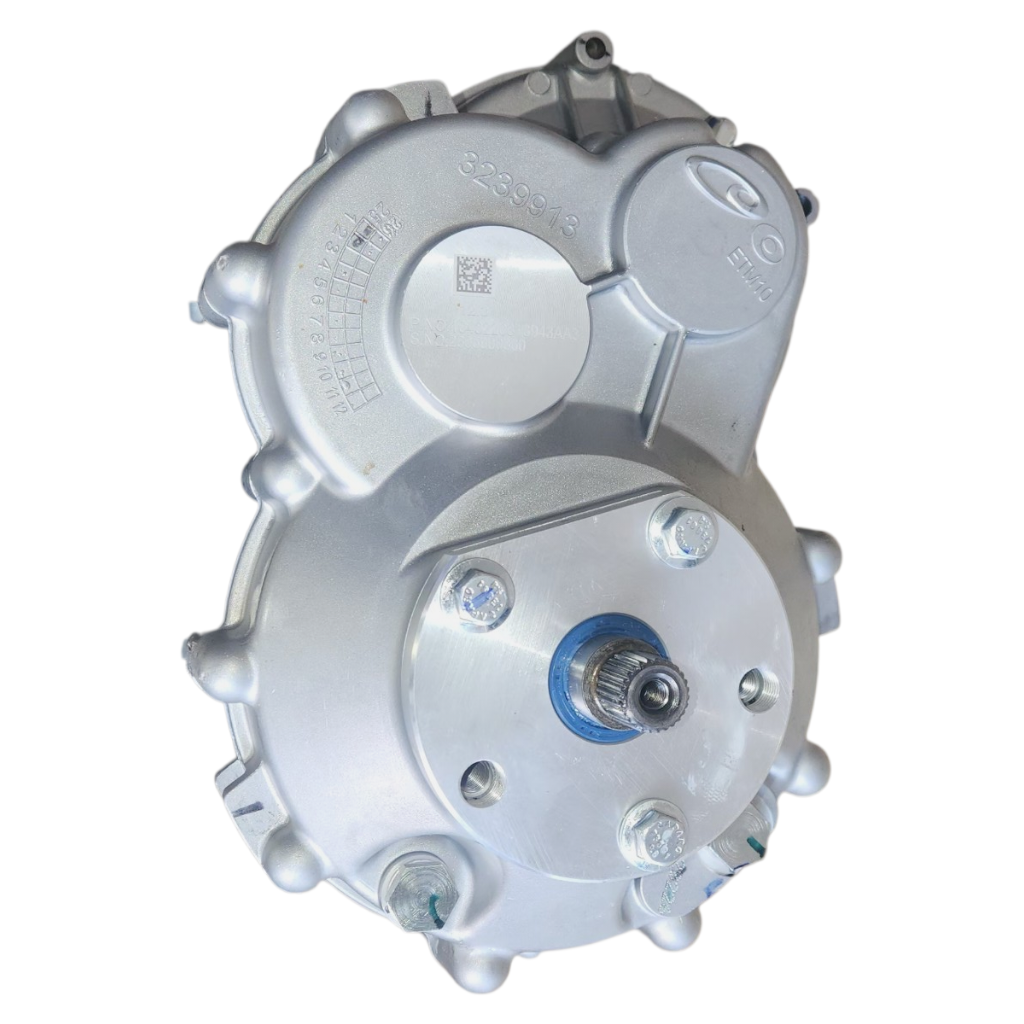

NTS GREEN 9858 2

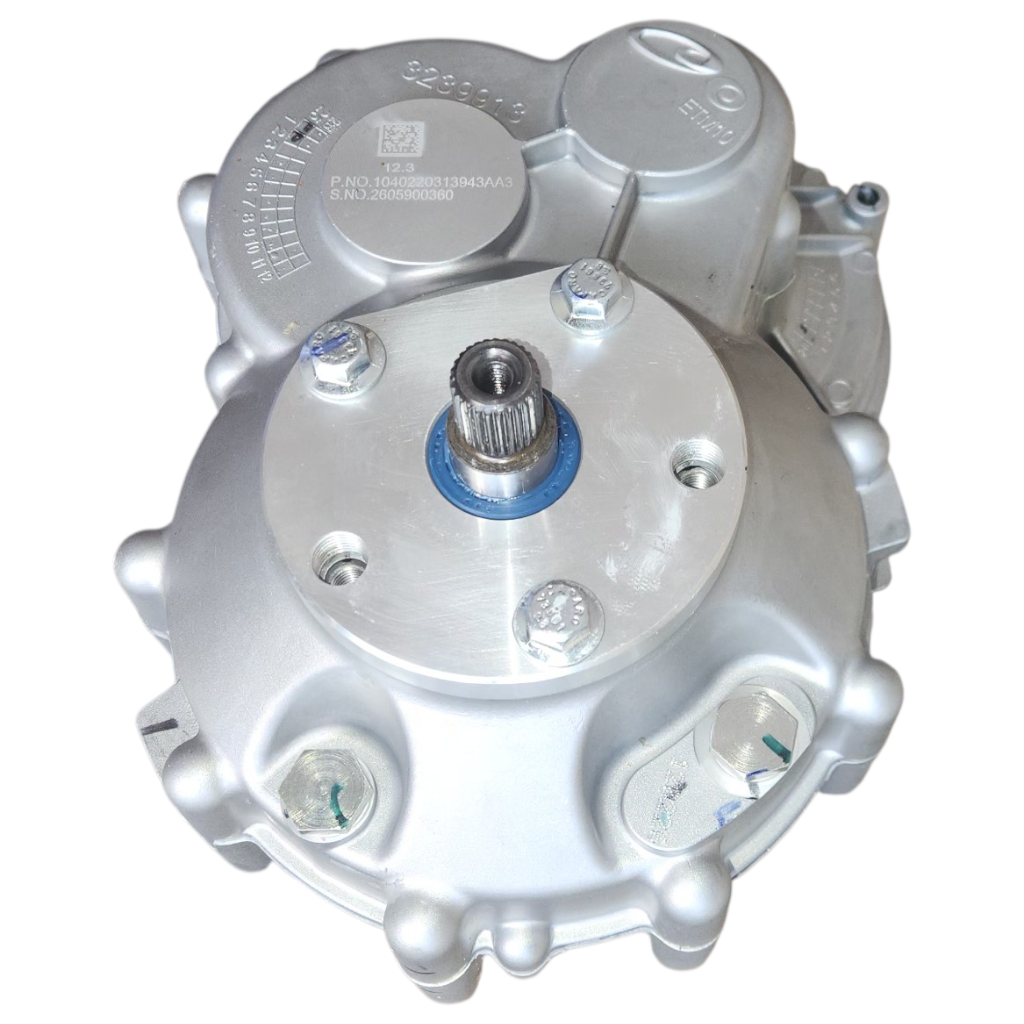

NTS GREEN 9858 3

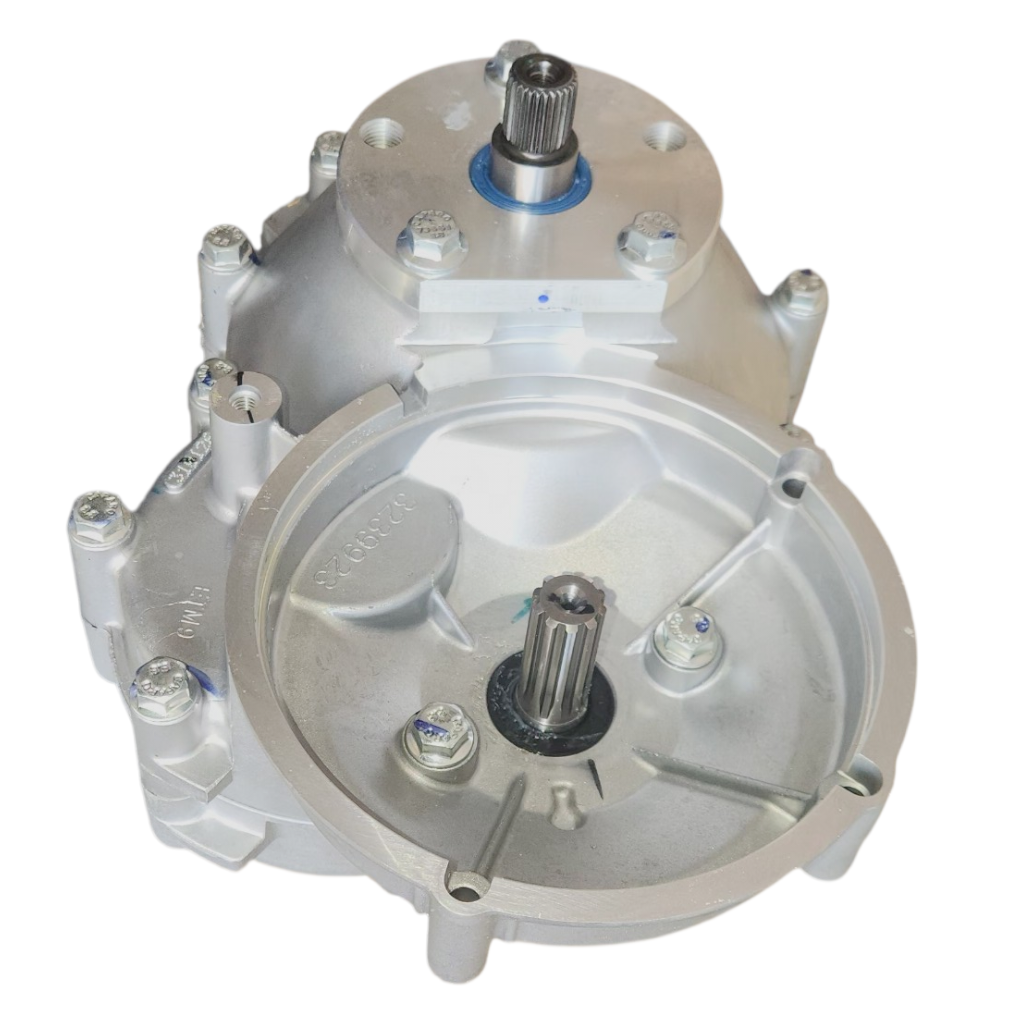

NTS GREEN 9858 4

Contact for More Details

Email: info@nextgenspareparts.com

Number: +91 9408436594

Address: 9, SHANKHESHWAR INDUSTRIAL ESTATE,NR. KARNAVATI DAIRY,TAJPUR ROAD,CHANGODAR,AHMEDABAD. 382210.

Electric Vehicle Gear Box Manufacturers & Suppliers

High-Torque Differential Gearboxes for L3 (E-Rickshaw) & L5 (E-Auto) Loaders

At NextGen Spare Parts, we understand that in an Electric Vehicle, the motor gives the power, but the Electric Vehicle Gear Box gives the torque. A poorly designed gearbox with "Spur Gears" will whine like a siren and heat up under load. You don't need just a gearbox; you need Silent Transmission.

We are specialized Electric Vehicle Gear Box Manufacturers and suppliers of complete Electric Three Wheeler Retro Kits. Whether you are converting an old diesel Piaggio Ape into an EV or assembling a new L5 Loader, our gearboxes are engineered to handle the heavy start-stop traffic of Indian roads without breaking teeth.

Why Our Electric Vehicle Gear Box Stands Out?

We don't sell cheap imports. Our gearboxes are designed for Indian Load Conditions (Overloading).

  • Helical Gear Technology: Unlike cheap gearboxes that use straight-cut gears, we use Helical Gears. This reduces NVH (Noise, Vibration, and Harshness) by 40%, giving your vehicle a silent, premium feel.
  • Optimized Gear Ratios:
    • 1:10 Ratio: For High Speed (Passenger E-Auto).
    • 1:12 / 1:16 Ratio: For High Torque (E-Loader / Cargo applications).
  • Universal Motor Mounting: Our gearboxes come with standard flanges compatible with 1000W, 1200W, and 3000W PMSM/BLDC Motors.

Retrofit Expert Tip

"Converting a diesel auto? Don't just look at the motor power. If your Electric Vehicle Gear Box ratio is wrong, your motor will overheat within 5km."

Consult our technical team to match the right gearbox with your tyre size (10-inch vs 12-inch).

Electric Three Wheeler Retro Kits (The Complete Solution)

We are not just component sellers; we are solution providers. Our Electric Three Wheeler Retro Kits are "Plug & Play".

What’s inside the Kit?

  • The Heart: High-Efficiency Electric Vehicle Gear Box (Differential Integrated).
  • The Muscle: PMSM / BLDC Motor (48V / 60V / 72V).
  • The Brain: Intelligent Controller with Regenerative Braking.
  • The Limbs: Heavy Duty Axle Shafts (Custom length for Ape, Bajaj, Atul).

Applications

  • L3 Category: E-Rickshaws (Passenger).
  • L5 Category: Heavy E-Loaders (1 Ton Capacity) and E-Autos.
  • Retrofitment: Conversion of old ICE vehicles to Green Plates.

Technical Specifications (For OEM & Assemblers)

Feature Specification
Gear Type Two-Stage Helical Reduction (Silent Operation)
Housing Material High-Grade Die Cast Aluminum (ADC12)
Input Shaft Spline Type (Standard 16/18 teeth)
Oil Grade 80W90 / 85W140 Gear Oil
Load Capacity Up to 1200 KG (for L5 Loaders)
Flange Size Compatible with 4-Bolt & 6-Bolt Axle Tubes

Why Choose NextGen for EV Transmission?

We are the preferred Electric Vehicle Gear Box Suppliers for retrofitment centers in Delhi, West Bengal, Gujarat, and Maharashtra.

Durability

Our differential gears are case-hardened to HRC 58-62 to prevent wear.

No Leakage Guarantee

We use high-quality oil seals and liquid gasket technology to ensure zero oil leakage—a common issue in this industry.

Export Ready

Supplying EV drivetrain components to Nepal, Bangladesh, and Africa.

📞 Upgrade to Silent Power

Looking for a reliable Electric Vehicle Gear Box or a full Retro Kit? Get the transmission that lasts longer than the battery.

Call/WhatsApp:
+91 9408436594

Email:
info@nextgenspareparts.com

Location:
Ahmedabad, Gujarat (India).
